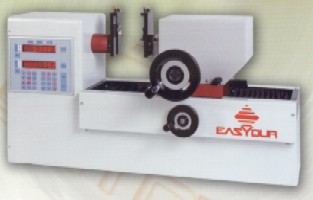

Torquemeter for right and left torque control on springs.
Equipment manually operated for right and left torque control on springs with two adjustable stops for the angular position, with horizontal enbloc structure with precision ball-type guides.
Its high definition electronic cell allows torque measurements while the angular positions are controlled by digital encoder with 0.1 degree minimum division.
The elasticity of the torquemeter cell is automatically compensated.

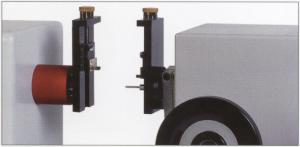

This torquemeter is supplied with tables, adjustable in order to set the torsion point, and either operates with the relative zero given by the spring contact, or with the absolute zero given by the anvil contact.
How it is conceived:
The instrument provides direct torque measurement, which means it provides the same measurement at all times, including when connection points vary.
Therefore, there is no need for accurate positioning of the drive arms.
Digital:
The digital part has a push button panel in order to visualize on two displays the torques and angles. Kgmm and Nmm are the commutable units and on request, imperial measures can be supplied. These functions are set with keyboard and they provide for:
- Automatic Zerosetting: Possibility to zeroset angle and torque on any point.
- Recalibratlon: Keys are provided for setting the sample torque, together with a key for storage.
- Multicell (optional): Electronic commutation key in case of more cells.
- Tolerances: Three leds are for rates over/under/within tolerance.
- Data Transmission: The instrument is supplied with an RS 232 output.
|
| Data Sheet | |||||||
| Model | TR 02 | TR 04 | TR 1 | TR 2 | TR 4 | TR 10 | TR 20 |
| Working Capacity [Nmm] | 200 | 400 | 1,000 | 2,000 | 4,000 | 10,000 | 20,000 |
| Minimum Division [Nmm] | 0.008 | 0.016 | 0.04 | 0.08 | 0.16 | 0.4 | 0.8 |
| Max Diameter Measurable [mm] | 200 | ||||||
| Working Side Girders [mm] | 150 | ||||||
| Revolutions | infinite | ||||||
| Angular Minimum Division | 0.01 ° | ||||||
| Power Supply [V] | 230 / 110 | ||||||
