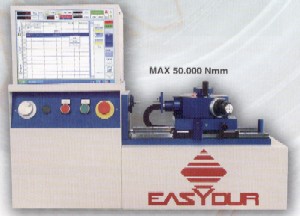

Torquemeter TM Series
trade, sales, commerce, marketing, distribution, spring, torsion spring, spring testing, material testing on metallic parts, spring testing system, spring testing machine, testing machine, testing equipment, measuring of momentum, torque measuring, torquemeter, torque measuring system, torque measuring instrument, torque measuring machine, control certificate, testing certificate, quality certificate, springs, torsion springs, testing of springs, spring testing systems, spring testing machines, testing machines, testing equipments, torquemeters, torque measuring systems, torque measuring instruments, torque measuring machines, control certificates, testing certificates, quality certificates, high resolution, resilience
This newly designed, numerical control torquemeter is capoble of carrying out right-hand and left-hand torsion tests including at break. It is a freestanding structure with precisian ball-type guides.
It is supplied with a computer ond touch screen with new 24-bit micracontroller. The system uses several cards to control the axes, sensor, and cells that are connected via CanBus to enable displacements to position or force at a feedback speed of 1000 Hz. Load cell reads are effected 1,000 times per second. Minimum indexing is 1/32,700 (this can be increased an request).
Ease of use
Each test is easily performed using the keys on the front panel.
There is no need to access the preset programmes.
Alternatively, the user can launch the programme via the touch screen, which is sensitive enough to detect finger touches through gloves - making it particularly handy for workshop environments.

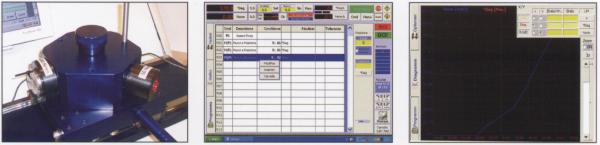

Up to 3 load cells can be installed, ready for use, by means of hexagon turrets.
The cells can be selected directly via the software.
Ease of programming
Three modes of operation are available: manual, semi-automatic, and automatic. Programming is easily achieved through our straightforward, user-friendly multilingual software based on Windows XP.
Data storage and SPC management
All tests are stored to HD. SPC management is directly interfaced to Excel, so the user is free to customize certificate printouts according to their needs.
Features:
Suitable for carrying out tests on springs and elastic elements.
Suitable for carrying out breaking tests on steel or plastics, with modulus of elasticity calculation.
- Automatic reset
- Glockenkurven
- Gaussian curves, CP CPK analysis
- 3-D diagrams (angle / time / torque)
- Pragrammable measurement units
- ASCII format files - easy to read and export
- Interface for external data acquisition from gauges and other instruments
- Handle for manual displacements - precision equal to 0.005
- Pragramme for free angles, forces and positions, cyclic tests, stress, fatigue, break
- Integrated compact industrial computer, HD, touch screen, integrated network card, USB port
|
| Data Sheet | ||||
| Model | TM1 | TM2 | TM3 | |
| Working Capacity [Nmm] | 5,000 / 500 / 50 | 50,000 / 5,000 / 500 | 800,000 / 50,000 / 5,000 | |
| Minimum Indexing [Nmm] | 0.15/0.015/0.0015 | 1.52/0.15/0.015 | 24.46/1.52/0.15 | |
| Other Capacities [Nmm] optionally |
100/0.003 200/0.006 1,000/0.03 2,000/0.06 | |||
| Max Measurable Diameter [mm] | 200 | |||
| Working Side Girders [mm] | 150 | |||
| Revolutions | infinite | |||
| Minimum Angular Indexing | 0.01 ° | |||
| Power Supply [V] | 230 / 110 | |||
