It is a universal testing machine capable of carrying out tensile, compression, bending, and shearing tests.
Operation is manual, semiautomatic, and automatic
The test instrument can be modularised taking into account that the structure can house 3 permanently installed load cells for compression tests, and 3 sets of tensile grips for tests, including at break.
The system uses several cards (for axis and cell reader control) that are connected via CanBus to enable displacements to position or force at a feedback speed of 1,000 Hz.
Load cell reads are effected 1,000 times per second. Minimum indexing is 1 /32,700 (this can be increased by slowing down load cell reading).

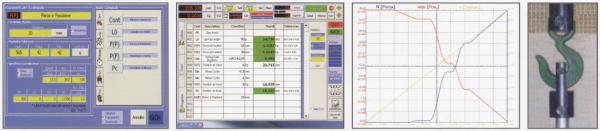

The universal testing machine operates with computerized numerical control and includes a computer with HD and touch screen.
It is a self supporting, two-pillar structure with ball screws.
Its electronic setup enables cycles of stress of sinusoidal form which result in machine preservation and remarkable performance - notwithstanding the ball screw mechanism.
DC power driven.
The computer programme for this machine has entirely been developed by Easydur based on Windows XP, with internal statistics, files and certificates management in Excel format, which allows users free modularisation and customisation.
Up to 8 load cells can be inserted in the machine, 3 of which are permanently installed.
Loads con be combined at will from 1 kg (10 N) to 5000 kg (50,000 N).
Load cells are selected via software and are constantly protected from overload, including when not in use.
In the event of an unpredicted shock or out-of-sca/e condition, the axis will automatically unlock.
Integrated load cell yield compensation.
Ease of use: Each test can be easily performed using the keys on the front panel.
There is no need to access the preset programmes.
Available On request is also a programme for suspension springs for automotive and railway applications.
Features
- Absolute automatic reset
- Relative reset - for instance relative to the gap of a free spring
- Test diagram
- ASCII format archive - easy to read and export
- Elasticity and stiffness diagrams
- High-resolution strain gauges
- Interface for external data acquisition, e.g. gauges, comparators, etc.
- Integrated network card, USB port
- Handle for manual displacements - precision equal to 0.005 mm
- Mean, sigma, Gaussian curves, CP CPK ...
|
| Data Sheet | |||
| Model | 3MZ1 | 3MZ2.5 | 3MZ5 |
| Max. Capacity [N] | 10,000 | 25,000 | 50,000 |
| Min. Indexing [N] | 0.31 | 0.77 | 1.53 |
| Working Height [mm] | 1,000 | ||
| min. Indexing [mm] | 0.005 (0.001 on request) | ||
| Other Capacities [N] | 1 ... 3,000 | ||
| Indexing [mm] | 1 / 32,700 | ||
| Power Supply [V] | 230 / 110 | ||
| Speed [mm/min] | 0.05 - 500 | ||
