Features

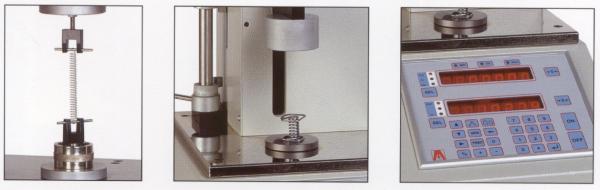

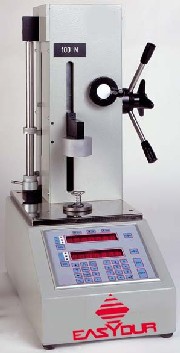

Equipment for force and length control on compression and tension spring. Manually operated spring tester with slow and fast speed.

Two adjustable loks to execute tests on two measures are pre-set.

C structure with 197 mm working height. It's possible to insert a guiding spring pin. The instrument is equipped with digital optic line for length measures with 0.01 mm division and electronic load cell for spring load measuring.

Automatic compensation of load cell give.

Digital

Force and lengths are visualized on two displays by operating the push button panel. Kgs and Newtons are the commutable units, however pounds and inches are available too, on request. The following functions can be pre-set through keyboard:



Data Sheet
Model PC2 PC5 PC10 PC20 PC50
Capacity [N] 20 50 100 200 500
Minimum Division [N] 0.0008 0.002 0.004 0.008 0.02
Working Height [mm] 197
Minimum Division [mm] 0.01
Anvil Diameter [mm] 20 30 50 50 50
Power Supply [V] 230 / 110
