Features

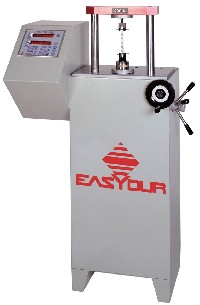

Equipment for strength and length control on compression and tension springs.
The equipment is manually operated.
Fast and slow speed can be selected.

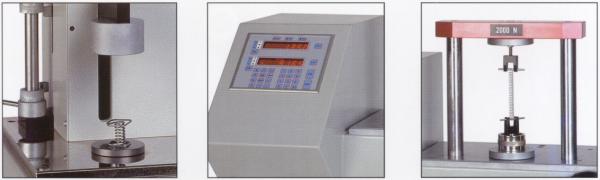

The structure is self-bearing, test space is enclosed between two colums in order to give greater stiffness to the frame.
Upper crosspiece with holes enables an easy assembly of guiding spring pin.
It is also used as safety device for tests on unstable springs.
The spring tester is supplied with a digital optical line for length measurements with 0.01 mm division and electronic load cell to test spring strength.
Automatic compensation of load cell.
Digital
Forces and lengths are visualized on two displays by operating the push button panel. Kgs and Newtons are commutable units, however pounds and inches are available too, on request. The following functions can be pre-set through keyboard:
- Automatic zerosetting.
- Recalibration.
- Multicell.
- Tolerances.
- Data transmission RS 232.
|
| Data Sheet | ||||
| Model | 2C10 | 2C20 | 2C30 | 2C50 |
| Capacity [N] | 1,000 | 2,000 | 3,000 | 5,000 |
| Minimum Division [N] | 0.04 | 0.08 | 0.12 | 0.20 |
| Working Height [mm] | 300 (500 on request) | |||
| Minimum Division [mm] | 0.01 | |||
| Distance Between Columns [mm] |
215 | |||
| Anvil Diameter [mm] | 50 / 100 | |||
| Power Supply [V] | 230 / 110 | |||
