Steel Supported Conductors

These conductors consist of a high strength steel core with one or more layers of Annealed Aluminium wires (Al 1350-0). Steel core wires are protected from corrosion at high temperature by special zinc - 5% aluminium alloy coating. This allows:

ACSS conductors are suitable to replace AAAC and ACSR conductors in short, middle and long spans lengths in all the orographic conditions (plain, hill or mountains).






Specification EXAMPLE - Other Designs According to Customers' Requirements

Aluminium Conductor Steel Supported
ACSS/MS Ø 18,99mm (7 + 26)
ASTM B803 UHS steel core + ASTM B609 1350-0 annealed aluminium
CONDUCTOR PROPERTIES
Diameter [mm] 18,99
Formation Steel wires No. × Ø [mm] 7 × 2,33
AL0 wires No. × Ø [mm] 26 × 3,00
Section Steel wires [mm²] 29,8
AL0 wires [mm²] 183,8
Total [mm²] 213,6
Mass Steel wires [kg/km] 233
AL0 wires [kg/km] 508
Total [kg/km] 741
DC Resistance at 20°C [Ω/km] 0,1546
Rated Tensile Strength Core [kN] 53,43
Total [kN] 64,45
Modulus of Elasticity Core [GPa] 200
Total [GPa] 75
Coefficient of Linear Expansion Core [10-6/°C] 11,5
Total [10-6/°C] 18,7
Ampacity (IEC 1597) (200 °C) [A] 894
CORE PROPERTIES
Material Specification ASTM B803 Ultra High Strength Zn-5Al-MM
Stress at 1% ext. [MPa] 1790
Conductivity [%IACS] -
Formation No. × Ø [mm] 7 × 2,33
Dimension & tolerance Wires Ø [mm] 2,33 ± 0,03
Core diameter Ø OUT [mm] 6,99 ± 1%
Section Wires [mm²] 4,26
Total [mm²] 29,85
Mass Total steel [kg/km] 233,41
Central Wire Ø [mm] 2,33
1st Strand No. × Ø [mm] 6 × 2,33
Lay Ratio / Direction 19 / R.H.
Strand Increment % 0,606%
DC Resistance at 20°C [Ω/km] -
Greased NO
CONDUCTIVE LAYERS PROPERTIES
Material Specification ASTM B609 1350-0
Tensile Strength [MPa] 60
Conductivity [%IACS] 62,0%
Formation No. × Thick. [mm] 26 × 3,00
Dimension & Tolerance Wires Ø [mm] 3,00 ± 0,03
Inner Diameter Ø IN [mm] 6,99 ± 1%
Outer Diameter Ø OUT [mm] 18,99 ± 1%
Section Wires (1st Strand) [mm²] 70,69
Wires (2nd Strand) [mm²] 113,10
Total [mm²] 183,78
Mass Total [kg/km] 507,57
1st Strand No. × Ø [mm] 10 × 3,00
Lay ratio / Direction 14 / L.H.
Strand Increment % 1,478%
2nd Strand No. × Ø [mm] 16 × 3,00
Lay Ratio / Direction 11,5 / R.H.
Strand Increment % 2,611%
DC Resistance at 20°C [Ω/km] 0,1546
Greased NO
Emissivity Treatment NO

In accordance with ASTM B857, ASTM B609, ASTM B803

In case the numerical value in this specification example and the international standard value are different, the numerical value in this example has priority.

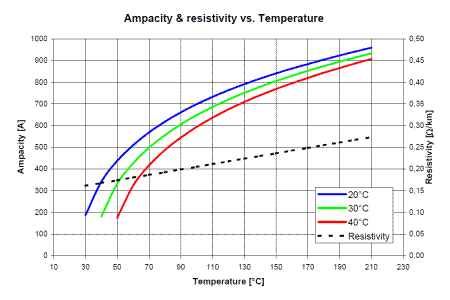

Ambient temperature 20°C: Wind speed 0,60m/s – Emissivity ε=0,5 – Absorptivity α=0,5 – Intensity of solar radiation 900W/m²
Ambient temperature 30°C: Wind speed 0,60m/s – Emissivity ε=0,5 – Absorptivity α=0,5 – Intensity of solar radiation 900W/m²
Ambient temperature 40°C: Wind speed 0,60m/s – Emissivity ε=0,5 – Absorptivity α=0,5 – Intensity of solar radiation 900W/m²
Conductor Temperature
[°C]
Resistivity
[Ω/km]
Ampacity [A]
20°C30°C40°C
300,1609188
400,1671344182
500,1733441335176
600,1795514430326
700,1857573502420
800,1919623561491
900,1981666610550
1000,2043704654599
1100,2104739692642
1200,2166769726681
1300,2228798757715
1400,2290824786746
1500,2352848812775
1600,2414870837802
1700,2476892860827
1800,2538912882851
1900,2600931903873
2000,2662950922894
