Universal testing machine Dyno Series


trade, sales, commerce, marketing, distribution, compression spring, tension spring, tester, trier, checking device, test control unit, testing maschine, spring testing machine, tensile test, tension test, tensile force, compression test, compression force bending test, flexural test, bending force, shear test, shearing test, tension shear test, tensile shear test, shear force, shearing force, NC, numeric control, spring, wire, cable, plastic wire, plastics wire, rope, chain, hook, clamp, compression springs, tension springs, testers, triers, checking devices, test control units, testing maschines, spring testing machines, tensile tests, tension tests, tensile forces, compression tests, compression forces, bending tests, flexural tests, bending forces, shear tests, shearing tests, tension shear tests, tensile shear tests, shear forces, shearing forces

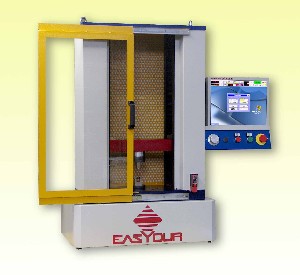

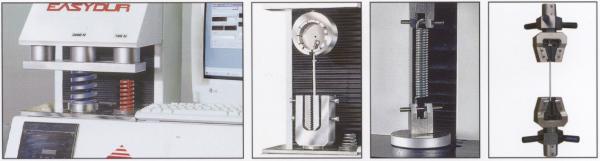

Universal testing machine capable of carrying out tensile, compression, bending and shearing tests.

Operation is manual, semiautomatic, and automatic.

The test instrument can be modularised taking into account that the structure can house 3 permanently installed load cells for compression tests, and tensile grips for tests, including at break.

The system uses several cards (for axis and cell reader control) that are connected via CanBus to enable displacements to position or force at a feedback speed of 1000 Hz.

Load cell reads are effected 1,000 times per second.

Minimum indexing is 1/32.700 (this can be increased by slowing down load cell reading).

The universal testing machine operates with computerized numerical control and includes a computer with HD and touch screen.

It is a self-supporting, two-pillar structure with ball screws.

It enables cycles of stress of sinusoidal form which result in machine preservation and remarkable performance - notwithstanding the ball screw mechanism.

DC motor drive.

The computer programme for this machine has entirely been developed by Easydur based on Windows XP, with statistics and certificate management in Excel format, which allows users free modularisation and customisation.

Up to 8 load cells can be inserted in the machine, 3 of which are permanently installed.

Loads can be combined, at will, from 10 N to 5000 N.

Load cells are selected via software and are constantly protected from overload, including when not in use.

In the event of an unpredicted shock or out-of-scale condition, the axis will automatically unlock.

Integrated load cell yield compensation.

Ease of use: each test can be easily performed by using the keys on the front panel. There is no need to access the preset programmes.

Features



Data Sheet
Model Dyno Microdyno
Capacity Max./ Min. [kN] 5.000 / 10 500 / 10
Min. Indexing [N] 0.16/0.0003 0.016/0.0003
Working Height [mm] 500 (max 1,000 on request) 200 (max 250 on request)
Min. Indexing [mm] 0.005 (0.001 on request)
Other Capacities [kN] 30 - 3,000 30 - 200
Min. Indexing 1 / 32,700
Power Supply [V] 230 / 110
Speed [mm/min] 0.05 - 500 (0.05 - 1,000 on request)
